Waterproof Dimmable Motion Sensor With Leading Edge Dimmer Switch

Name: Waterproof Dimmable Motion Sensor With Leading Edge Dimmer Switch
Brand: Merrytek
Price: 1 USD

Wholesale Waterproof Dimmable Motion Sensor With Leading Edge Dimmer Switch from china suppliers

Brand Name : Merrytek

Model Number : MC003V R

Certification : CE & R&TTE

Place of Origin : China

MOQ : Stop production, not available.

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 20,000pcs per Month

Delivery Time : 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks

Packaging Details : Packed in bubble bags firstly, and then reinforced with carton or outer packing

Product Name : Microwave motion sensor

Rated load : 800w(Inductive) 1200w(Resistive)

Operating Voltage : 220~240Vac,50HZ/60Hz

Detection Zone : Max(D×H):16m×12m

HF system : 5.8GHz ±75MHz, ISM wave band

Size : 92x52x 25.5 mm

Approval : CE & R&TTE

Operation temperature : -35℃~70℃

Function : 2 step /3 step dimming

IP rating : IP20

Contact Now

Waterproof 1-10v Dimmable Motion Sensor Leading Edge Dimmer Switch

Description:

Combined with with 1-10V dimmable LED drivers or ballasts ,this sensor can automatic switch on/off and dimming .
1-10V interface can match up with Merrytek stand-alone daylight sensor MS01 and achieve daylight harvesting.
Built-in adjustable daylight sensor.
Easy assembly.4-pole press-in terminal (L,N,N,L′),
Compact size makes it suitable to fix within most luminaries
Detection area, time delay and daylight threshold can be precisely set via DIP switch.
Wide detection area, range up to 16m in diameter.

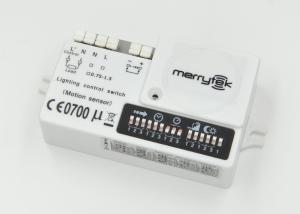

MC003V R is a innovative and active motion detector with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials. Mostly ,it with the higher mounting height 12m Max ,perfect for huge warehouse application .

Specifications:

Operating voltage	220-240Vac, 50Hz
Rated load	800W(inductive), 1200W (resistive)
HF system	5.8GHz±75MHz, ISM wave band
Power consumption	≤0.5W(standby), <1W(operation)
Transmitting power	<0.5mW
Detection zone Max.(D x H)	16m x 12m
Motion detection	0.5~3m/s
Detection angle	150°(wall installation) 360°(ceiling installation)
IP rating	IP20
Operation Temperature	-35℃~70℃
Hold time	10s/30s/90s/3min/20min/30min
Detection sensitivity	10% / 25% / 50% / 75% / 100%
Daylight sensor	5lux / 15lux / 30lux / 50lux / Disable
Stand-by period	5s / 5min / 10min / 30min / 1h / Disable
Stand-by dimming level	10% / 20% / 30% / 40% / 50%
Life time		50,000 hours
Guaranty		5 years

Applications:

Thanks to 12m mounting height ,this sensor is suitable for huge warehouse with big range application .
